Introduction
Recreational vehicles operate under continuous dynamic stress. As an RV travels across highways and unpaved terrain, the chassis and body panels experience constant torsional flexing, engine vibration, and high-velocity wind resistance. Standard mechanical latches often fail to maintain consistent pressure under these conditions. Over time, doors rattle loose, interior air seals degrade, and environmental moisture, road dust, and exhaust fumes penetrate storage bays and living quarters.
The root cause of these failures lies in how traditional latching mechanisms interact with door gaskets. Conventional cam latches simply rotate a straight arm behind a frame lip; they do not apply active inward pressure. When elastomeric weatherstripping hardens or takes a permanent set over time, standard latches leave subtle gaps along the door perimeter.
Compression latches resolve this systemic problem through mechanical pull-up action. By converting rotational or lever movement into axial clamping force, a compression latch actively compresses door weatherstripping against the frame, forming a airtight, watertight, and vibration-proof seal.
This comprehensive technical guide breaks down the structural mechanics of RV compression latches, maps out their optimal application across various RV door types, and provides a data-driven selection framework. It is specifically designed for procurement managers, category directors, and supply chain leaders sourcing RV hardware for distribution networks and OEM assembly lines.
What Is an RV Compression Latch
The Core Mechanism Explained
At its mechanical foundation, an RV compression latch is a panel-mounted fastening device designed to perform two distinct sequential motions: rotation and axial pull-up. Unlike a standard cam latch that only swings a pawl into place behind a door frame, a compression latch drives the pawl or cam inward toward the door panel as it reaches its closed position.
This pull-up motion is achieved through eccentric cam geometry or helical ramp profiles engineered into the central spindle. When the handle or key cylinder is operated, the initial movement rotates the cam behind the door frame striker. As the rotation reaches its final arc (typically between 90° and 180°), the internal helical driver or offset pin engages, converting rotational torque into 2 to 8 mm of linear axial pulling force.
Key structural components include:
Latch Body & Housing: The outer flange and mounting sleeve that anchor the latch flush or semi-flush to the door cutout.
Rotating Cam / Pawl: The offset locking arm that engages the back of the door frame or keeper.
Helical Spindle or Eccentric Pin: The internal mechanical drive that converts rotation into linear clamping travel.
Adjustable Compression Screw & Jam Nut: Threaded hardware on the cam assembly that allows fine-tuning of the initial grip distance to compensate for manufacturing tolerances.
Keeper or Striker Plate: The reinforced frame bracket that receives the cam and withstands repeated compression loads.
This axial travel is vital for maintaining gasket compression. Standard EPDM (Ethylene Propylene Diene Monomer) sponge rubber bulb seals require 30% to 40% physical compression to achieve their rated IP65 or IP66 ingress protection levels. Without a compression latch generating 100 N to 350 N of continuous clamping force, elastomeric seals cannot prevent water ingress during highway travel at high speeds.
Types of Compression Activation
RV compression latches are engineered with different actuation interfaces depending on the required operating speed, ergonomic leverage, and access control level:
Quarter-Turn Cam Style
Operating via a single 90° rotation of a T-handle, wing knob, or flush key cylinder, quarter-turn models integrate the rotational and axial pull-up motions into one continuous turn. As the key or handle turns, the cam swings behind the frame and immediately draws inward by a fixed distance (typically 3 to 5 mm). This style offers compact panel footprints and rapid operation.
Over-Center Lever Style
Over-center lever latches feature a folding handle mechanism that provides high mechanical advantage, such as Kinntoo’s heavy-duty adjustable over-center compression latch. Lifting the lever rotates the cam into position; pushing the lever flat against the housing drives the mechanism past its mechanical center, locking the door inward with positive force. This over-center geometry prevents accidental opening under severe road vibration, making it ideal for heavy exterior compartment doors and equipment bays.
Adjustable Compression Models
Adjustable compression latches feature a threaded center shaft or dual-nut locking assembly that allows technicians or assembly workers to adjust the total grip distance across a broad range (such as 1 to 24 mm or 23 to 46 mm). This fine-tuning capability ensures that exact gasket compression standards are met despite variances in door thickness, frame alignment, or rubber seal durometer.
Which RV Doors Need a Compression Latch
Best Matches: Cabin, Wardrobe, and Compartment Doors
Not every door on a recreational vehicle requires high-force compression, but specific high-vibration and weather-exposed applications make compression latches essential:
Exterior Storage Compartments & Baggage Bays: Exterior baggage doors are directly exposed to rain, road spray, dirt, and highway wind pressure. A compression latch forces the perimeter EPDM gasket against the door jamb, creating an IP65 environmental seal that prevents water damage to stored gear, electrical bays, and plumbing manifolds.
Wardrobe and Interior Closet Doors: Interior storage doors on RVs are prone to annoying rattles caused by road chatter and chassis flex. Over-center compression latches keep wardrobe doors firmly seated against noise-dampening bumpers, ensuring quiet cabin environments during transit.
Long-Span and Heavy Gasketed Doors: Large access hatches, outdoor kitchen bays, and generator doors experience subtle flexing across their spans. Multi-point compression latches apply uniform closure pressure along the entire door margin, preventing edge lifting and seal degradation.
When Alternative Latches Make More Sense
While compression latches provide superior sealing and vibration isolation, alternative latch styles are more practical in certain scenarios:
Light Interior Cabinet Doors: Small overhead cupboards and lightweight pantry doors do not require weather seals or heavy clamping force. Simple push-button latches or magnetic catches provide sufficient retention at a lower unit cost and lighter weight.
High-Frequency Slam-Shut Access: Applications where operators frequently push doors closed with one hand (such as entry screen doors or quick-access service hatches) benefit from spring-loaded slam latches, which lock automatically upon closing without manual handle actuation.
Cost-Sensitive, Low-Exposure Utility Panels: For interior service panels or non-gasketed battery access doors where ingress protection is unnecessary, standard low-cost quarter-turn cam latches deliver adequate retention without the added complexity of compression mechanisms.
Application Comparison at a Glance
Selecting the correct latch family requires evaluating environmental exposure, gasket presence, vibration severity, and door mass:
RV Door Application | Primary Risk Factor | Recommended Latch Style | Required Sealing / IP Rating | Key Performance Benefit |
|---|---|---|---|---|
Exterior Storage Bays & Pass-Throughs | Water ingress, dust, high-speed road vibration | Adjustable Over-Center or Lever Compression | IP65 / IP66 Watertight | Positive gasket pull-up; prevents door rattling |
Toy-Hauler Ramp & Utility Bays | Structural flex, heavy washdown, road spray | Heavy-Duty Stainless Steel Compression Latch | IP65 / NEMA 4 | High mechanical clamping force (300+ N) |
Cabin Wardrobes & Heavy Pantry Drawers | Cabin rattle, accidental opening during transit | Flush Quarter-Turn Compression Latch | Dust-resistant / Vibration-isolated | Prevents rattling and retains contents on rough roads |
Overhead Lightweight Cupboards | Mild cabin vibration | Push-Button Latch or Magnetic Catch | N/A (Interior) | Fast push-to-open operation; lightweight |
Screen Doors & Quick-Access Service | High opening frequency | Spring-Loaded Slam Latch | Basic contact seal | Convenience of push-to-close locking |

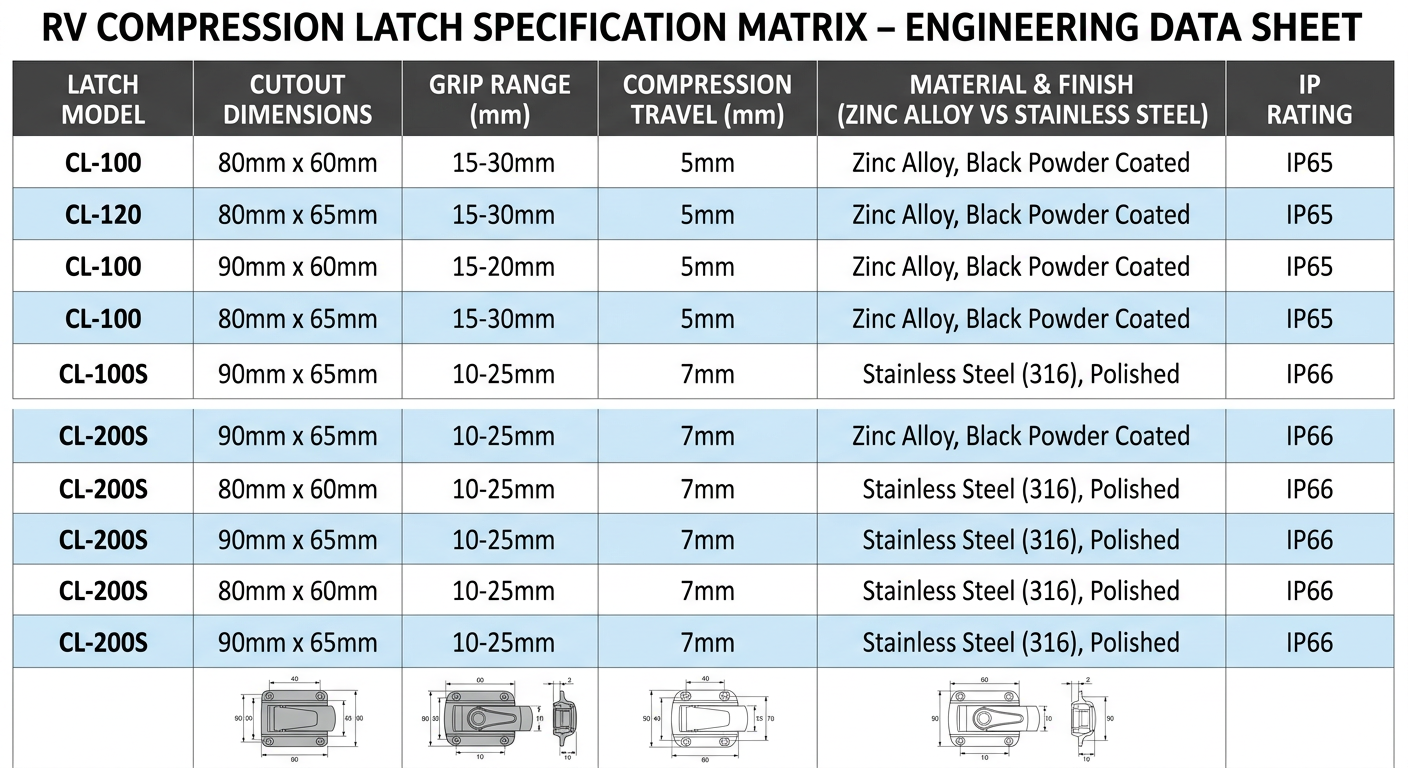

How to Select the Right RV Compression Latch
Key Selection Parameters
To specify the correct compression latch SKU for production lines or aftermarket catalogs, procurement teams must evaluate three core dimensional parameters:
Door Thickness & Cutout Dimensions: The latch housing must match the panel cutout profile (e.g., standard 25 x 87 mm rectangular cutout or 22.5 mm round hole) and accommodate the outer panel sheet thickness (typically 1.0 to 11.0 mm for aluminum or composite RV doors).
Grip Range & Compression Travel: The grip range represents the total distance from the front mounting surface of the door to the internal latching surface of the frame keeper. The formula to determine required grip is: Required Grip = Door Outer Panel Thickness + Internal Frame Lip + Uncompressed Gasket Thickness The latch’s compression travel (usually 2 to 8 mm) must equal or exceed the required gasket compression depth to guarantee a tight seal.
Compression Force Requirements: Different elastomeric seals demand varying clamping loads. Solid EPDM bulb seals require higher closing forces (up to 200–350 N) than soft cellular foam tape (50–110 N). Match the mechanical leverage of the latch handle to the force needed to compress the seal without straining the operator.
Material and Finish Choices
Material selection directly dictates product service life, corrosion resistance, and unit cost:
Die-Cast Zinc Alloy (ZAMAK 3 / ZAMAK 5): The industry standard for general RV compartment doors. Zinc alloy allows intricate structural moulding, tight dimensional tolerances, and high tensile strength. High-quality zinc latches feature electro-deposited E-coat base layers followed by UV-resistant black powder coating to withstand outdoor exposure.
304 & 316 Stainless Steel: Recommended for high-end RVs, marine-adjacent trailers, and coastal environments. Specialized hardware like the SUS304 adjustable over-center latch (ZT105 series) provides outstanding resistance to salt spray, road de-icing chemicals, and atmospheric corrosion, passing 500-hour neutral salt spray tests (ASTM B117) without surface pitting. For additional insights on hardware selection and material durability, read our in-depth guide on adjustable 304 stainless steel toggle latches.
Finish Plating & Compliance: Exterior hardware must comply with environmental directives at the part-number level. Ensure all zinc plating, passivating treatments, and powder coatings comply with European RoHS 3 (Directive 2015/863) and REACH (EC 1907/2006) regulations regarding heavy metals and hazardous substances.
Keyed vs. Non-Keyed Configurations
Access security requirements determine cylinder integration across the SKU catalog:
Key-Locking Models: Essential for exterior storage bays, tool compartments, and battery holds. Specify standardized key codes (such as CH751 or custom multi-disc tumbler keys) with integrated dust shutters to protect internal lock tumblers from road grit and ice accumulation.
Tool-Operated & Thumb-Turn Models: Used for interior utility access or panels where emergency opening is required without searching for a key (e.g., electrical disconnect or propane valve compartments). These latches use hex-socket, square-drive, or manual thumb-turn actuators.
Compression Latch vs. Other Latch Options
Compression vs. Slam Latch
Understanding the trade-offs between compression latches and slam latches helps procurement teams avoid misspecifying hardware for critical doors:
Sealing Performance: Compression latches active-pull the door inward against the frame, compressing the rubber gasket uniformly. Slam latches rely on spring-loaded angled latches that slip over a striker plate; they do not apply active inward pull, leaving gaskets minimally compressed.
Vibration Resistance: Under severe road shaking, the mechanical locking linkage of an over-center compression latch cannot disengage without manual handle rotation. Slam latches can experience micro-bouncing against the striker, which gradually wears down the latch nose and creates cabin chatter.
Operating Effort: Slam latches allow quick “push-to-close” convenience, whereas compression latches require two distinct movements (closing the door and rotating/flipping the handle) to engage full compression.
Compression vs. Basic Cam Latch
Basic non-compression cam latches are widely used in low-cost utility applications, but their limitations become clear when compared to compression mechanisms:
Mechanical Advantage & Closure Force: A basic cam latch simply rotates a flat metal pawl behind a door frame lip. If the door panel is slightly warped or the gasket is stiff, the operator must physically push the door hard with one hand while forcing the key to turn with the other. A compression latch uses internal mechanical advantage to pull the door shut smoothly via handle torque alone.
Gasket Wear & Tear: Rotating a basic cam directly across a compressed rubber gasket creates friction and tearing along the rubber seal. Compression latches rotate the pawl into position before pulling it straight back against the frame, eliminating abrasive sliding friction against the gasket.
Distribution SKU Strategy: While basic cam latches offer lower initial unit costs, stocking premium compression latches reduces warranty claims, water-damage repair costs, and distributor return rates for RV OEMs.
Compliance, Quality, and Partner Considerations
Verifying Compliance Documentation
When importing and distributing RV door hardware across European, North American, and Australian markets, verifying technical compliance at the component level is non-negotiable. Procurement managers must demand full regulatory documentation from manufacturing partners prior to issuing purchase orders:
Chemical & Environmental Compliance: Part numbers must carry verified RoHS (Restriction of Hazardous Substances) and REACH certificates of compliance, ensuring zero hexavalent chromium, lead, or phthalates in powder coatings or plating.
Ingress Protection (IP) & Enclosure Ratings: For weather-exposed storage compartments, latches must hold certified IP65 (dust-tight and protected against water jets) or NEMA 4 ratings verified through independent laboratory testing under EN 60529 standards.
Metallurgical Standards: Cast zinc housings should meet DIN-EN 1774 (ZAMAK chemical composition), and stainless steel components must be certified via spectrographic alloy reports.
Manufacturing Consistency and Customization
For RV parts distributors and category managers, supplier reliability extends beyond basic technical drawings. The true cost of hardware lies in dimensional consistency and supply chain stability.
Critical Quality Assurance Data
Before onboarding a hardware vendor, request comprehensive Quality Assurance (QA) documentation:
Salt Spray Corrosion Testing: ASTM B117 / ISO 9227 test reports demonstrating 72 to 500 hours of continuous salt fog exposure without base metal corrosion.
Mechanical Cycle Life Testing: Test data verifying 30,000 to 50,000 continuous opening/closing cycles under full rated clamping load without mechanical failure.
Dimensional Inspection Reports: CMM (Coordinate Measuring Machine) inspection sheets confirming batch-to-batch tolerance control within ±0.05 mm on critical mounting dimensions.
Custom Manufacturing Capabilities with Kinntoo
For distributors seeking private-label branding or modified mechanical drive assemblies, partnering with an established manufacturing specialist makes all the difference. Kinntoo brings extensive precision hardware and specialized locking engineering expertise to the B2B RV sector.
Operating advanced production facilities, Kinntoo eliminates assembly errors and guarantees tight batch-to-batch consistency across high-volume production runs. Every compression latch assembly undergoes strict final quality inspection, verifying smooth cam rotation, compression torque, key tumbler operation, and surface finish integrity before packaging.
Kinntoo provides comprehensive OEM/ODM customization options tailored for RV channel procurement teams:
Custom Logo Branding: Laser-etched or die-cast brand logos on latch handles and housing caps.
Structural & Shaft Modifications: Customized grip lengths, extended threaded spindles, specialized mounting brackets, and custom keying systems.
Rapid Engineering Support: Dedicated R&D support with detailed 2D/3D CAD models and prompt technical inquiry responses.
Streamlined Compliance: Complete, part-number-specific RoHS, REACH, and salt-spray test documentation ready for customs clearance and distributor audits.
Conclusion
RV compression latches represent the definitive mechanical solution for eliminating cabin rattles, preventing water and dust ingress, and securing compartment doors under severe highway vibration. By converting rotational input into positive axial clamping force, compression latches maintain constant gasket pressure that standard cam and slam latches cannot match.
For procurement managers and category directors sourcing RV hardware, successful SKU selection requires balancing dimensional grip ranges, door panel stack-ups, material corrosion resistance, and certified IP ratings. Equipping your distribution catalog with high-performance, compliant compression latches builds long-term customer trust and eliminates costly field returns.
Next Steps for Procurement Teams: Evaluate your current RV hardware portfolio against the sizing and selection framework outlined above. Contact the engineering team at Kinntoo today to request technical drawings, custom sample kits, and OEM pricing for your upcoming catalog cycle.
Key Takeaway: Compression latches eliminate road chatter and seal failure by converting handle torque into 2–8 mm of active gasket pull-up force, making them mandatory for weather-exposed RV compartments.
Pro Tip: Always calculate required grip range using the combined stack-up of door panel, frame lip, and compressed gasket thickness to ensure optimal weather sealing.
Frequently Asked Questions (FAQ)
What is the difference between a standard cam latch and an RV compression latch?
A standard cam latch only rotates a locking arm behind a door frame, offering no active pull-up force. In contrast, an RV compression latch first rotates the cam into position and then draws it axially inward by 2 to 8 mm. This active clamping motion compresses weatherstripping gaskets to create a watertight, dustproof, and vibration-resistant IP65 seal.
How do I adjust the grip range on an adjustable RV compression latch?
Adjustable RV compression latches feature a threaded central shaft and jam nut assembly. By loosening the jam nut, turning the cam along the shaft to match the exact combined thickness of the door panel, frame lip, and compressed gasket, and tightening the nut back into place, technicians can achieve precise gasket compression and eliminate door rattle.
Are RV compression latches waterproof for exterior compartment doors?
Yes, high-quality RV compression latches designed for baggage doors and exterior bays are engineered to meet IP65 or IP66 ingress protection standards. When paired with durable EPDM rubber seals, the axial clamping pressure prevents water ingress from high-pressure road spray, rain, and heavy washdowns.
What materials are best for heavy-duty RV compartment latches?
Die-cast zinc alloy (ZAMAK) with UV-resistant powder coating or black E-coating is the industry standard for strength and durability. For high-corrosion environments or marine-grade applications, passivated 304 or 316 stainless steel compression latches offer maximum resistance against salt spray and road de-icing chemicals.
